ZXL-150D8 full hydraulic multifunctional crawler drill

ZXL-150D8Multifunctional drilling rig

ZXL-150D8 Multrfunctional dilliong rig is produced by Wuxi Zhimai Construction Machinery CO,LTD This new type is designed by not only based on MXL series dilling rig but also according to construction step jet grouting- anchor-anti floating anchor.

Applications:

1.weak ground construction 2. waterproof curtain 3.Guiding hole construct

Main characters:

1. Assembly 10m sub-tower, which is detachable.

1) When conduct jet-grouting construction, through the high tower assembling, it can reduce assembling and disassembling times and then help saving time and material.

2) When conduct anti-floating anchor, it can help save extra lfting fee by using its own lift.

3) When conduct inclining anchor cable construction, the axiliary tower can be detached without influencing the other functions of the machine.

4) When conduct short anchor construction, the machine can achieve straight diling through, which can be really time saving and convenient.

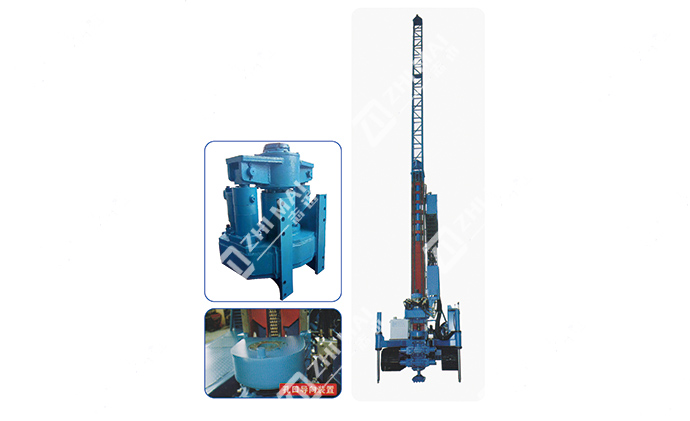

2. Rotary head (through-hole type)

1) With its 92mm diameter, it can guarantee clear pass for dia89mm dillig rod. It can also meet the requirements of triple pipe jet grouting construction and anchoring.

2) With its hydraulic crawler chuck, it is much more convenient and easier for changing the dilling tools.

3) With its large torque of rotary head and our intensive dilling tools, it can achieve dilling through without making any guiding holes, which can save a lot of time.

4) It adopts large-torque rotary head, that when equipped with our enhanced type jet grout dilling tools, it can be really time and cost saving without making guiding holes in most of working layers.

3. Track institution

Selection of grounding than small tracked chassis, in the soft ground can move feely.

4. orifice guide device

1) Knock down dillig toolis convenient for jet construction, ensure construction angle and verticality.

2) lmproving the stress condition of steel pipe or dilling tool for anchoring construction, the construction precision higher.

3) Special rotating mechanism, reducing the tool wear.

Technical Parameter：
